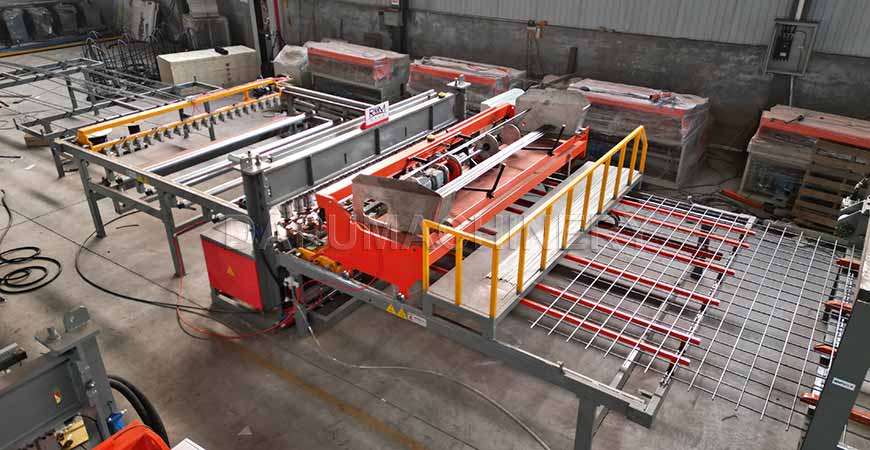

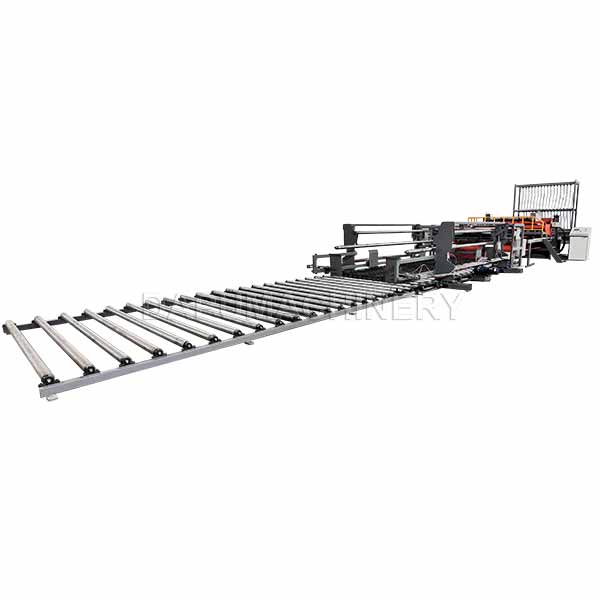

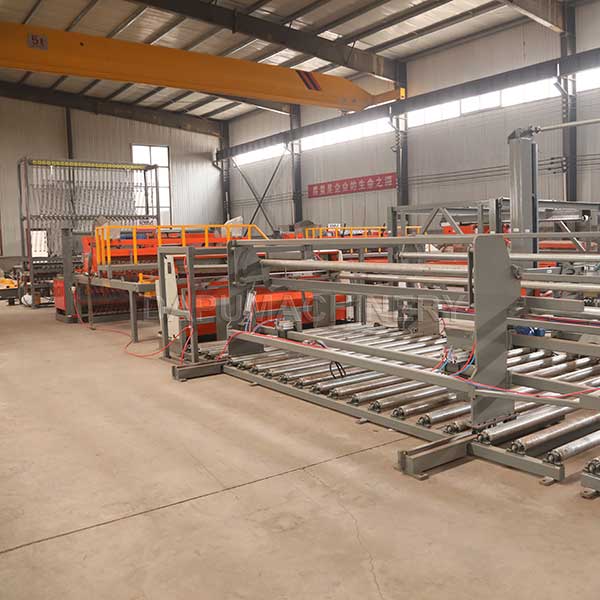

Panel Mesh Welding Machine
Panel Mesh Welding Machine
· Pneumatic mhando
· Otomatiki kugadzira mutsara
· Kumhanyisa dhizaini yazvino
Iyo BRC mesh welding muchina unotora Pneumatic welding tekinoroji uye kumhanya kwakanyanya.100 nguva paminiti.Welded parameters inodzorwa kuburikidza neHMI interface.Welded parameters inodzorwa kuburikidza neHMI interface.
3-8mm mesh welding muchina unoshandiswa kugadzira simbi rebar mesh, mesh yemugwagwa, mesh yekuvaka yekuvaka, nezvimwe. Iyo kongiri inosimbisa mesh muchina inokodzera kugadzirwa kwehupfumi kwechiedza uye chinorema mesh mapaneru.
Panel mesh welding muchina Parameter
| Model | DP-FM-2500A | DP-FM-2500A+ | DP-FM-3000A |
| Max.mesh width | 2500mm | 2500mm | 3000m |
| Line wire dia (Pre-cut) | 3-8mm | 3-8mm | 3-8mm |
| Cross wire dia (Pre-cut) | 3-8mm | 3-8mm | 3-8mm |
| Mutsara waya nzvimbo | 100-300mm | 3-6mm, 50-300mm 6-8mm, 100-300mm | 100-300mm |
| Cross waya nzvimbo | 50-300mm | 50-300mm | 50-300mm |
| Max.mesh kureba | 6m/12m | 6m/12m | 6m/12m |
| Max.welding nzvimbo | 80-100 nguva / min | 80-100 nguva / min | 80-100 nguva / min |
| Welding electrodes | 24pcs | 24pcs | 30pcs |
| Welding transformer | 150kva*6pcs | 150kva*9pcs | 150kva*8pcs |
| Kurema | 6.8T | 7.4T | 7.5T |
Panel mesh welding muchina Vhidhiyo:
Panel mesh welding muchina zvakanakira:
| Line wire feeding: | |
| Sarudzo 1: Waya dzemutsetse dzinopihwa kubva waya kubhadhara-kure (bere 1T) otomatiki, uye kuburikidza nekutanga yakatwasuka kuseta roller mudziyo.Iyo waya yekuchengetera mudziyo inogona kudyisa waya dzelongitude nhanho nhanho, ipapo kuburikidza yechipiri yakatwasuka kuseta roller mudziyo. | |

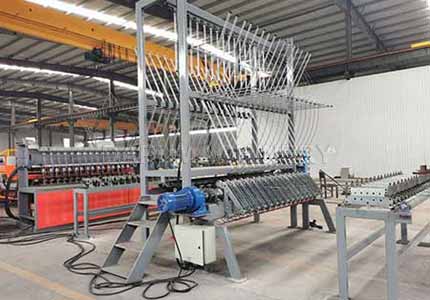

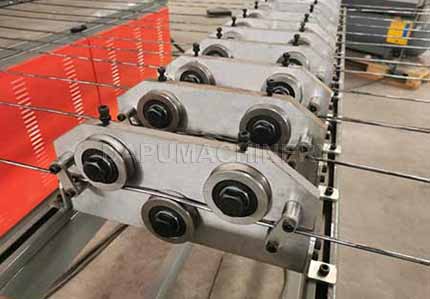

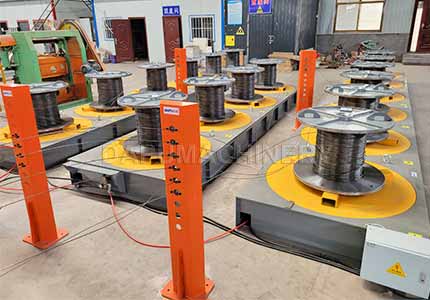

| Wire pay-off ye max.1T zvinhu | Kutanga kugadzika rollers |
|
|
|

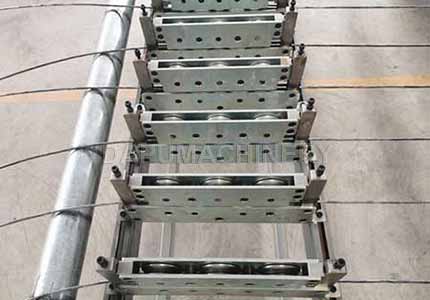

| Wire storage device | Yechipiri yakatwasuka ma rollers |
|
|
|
| Sarudzo 2: Waya yemutsetse inoda kufanotwasanudzwa uye isati yachekwa.Wobva waisa nemaoko iyo waya yekudyisa system.Kugadzirwa kwakafanana nekudyisa coil. | |
|
|
|

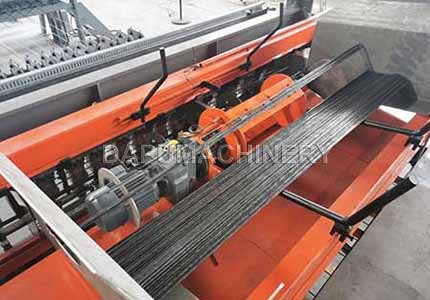

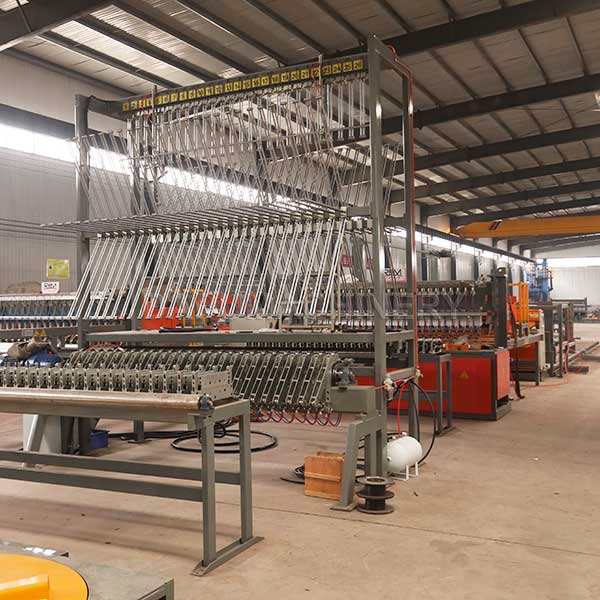

| Cross wire feeding: Waya dzemuchinjiko dzinofanirwa kunge dzakafanotwasanudzwa & dzakachekwa-chekwa, ipapo vashandi vanoisa waya dzemuchinjiko pamuchinjiko wewaya yekuchengetera mudziyo, unogona kutakura mawaya akawanda e1T.Kune imwe mota & yakaomeswa inoderedza iyo inodyisa huwandu hwewaya kune yemukati feeder nguva dzose.Nhanho mota inodzora kuyambuka waya inodonha, hombe torque, yakanyanya kunaka uye yakagadzikana. | |

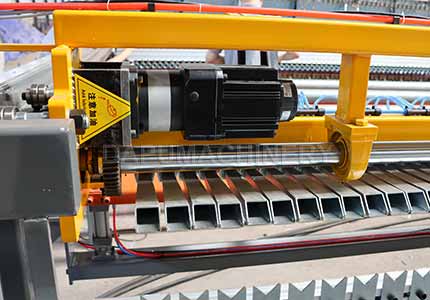

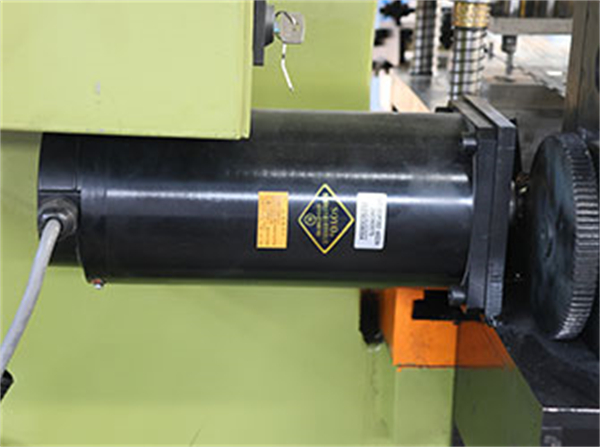

| Cross waya feeder | Nhanho mota |
|
|
|

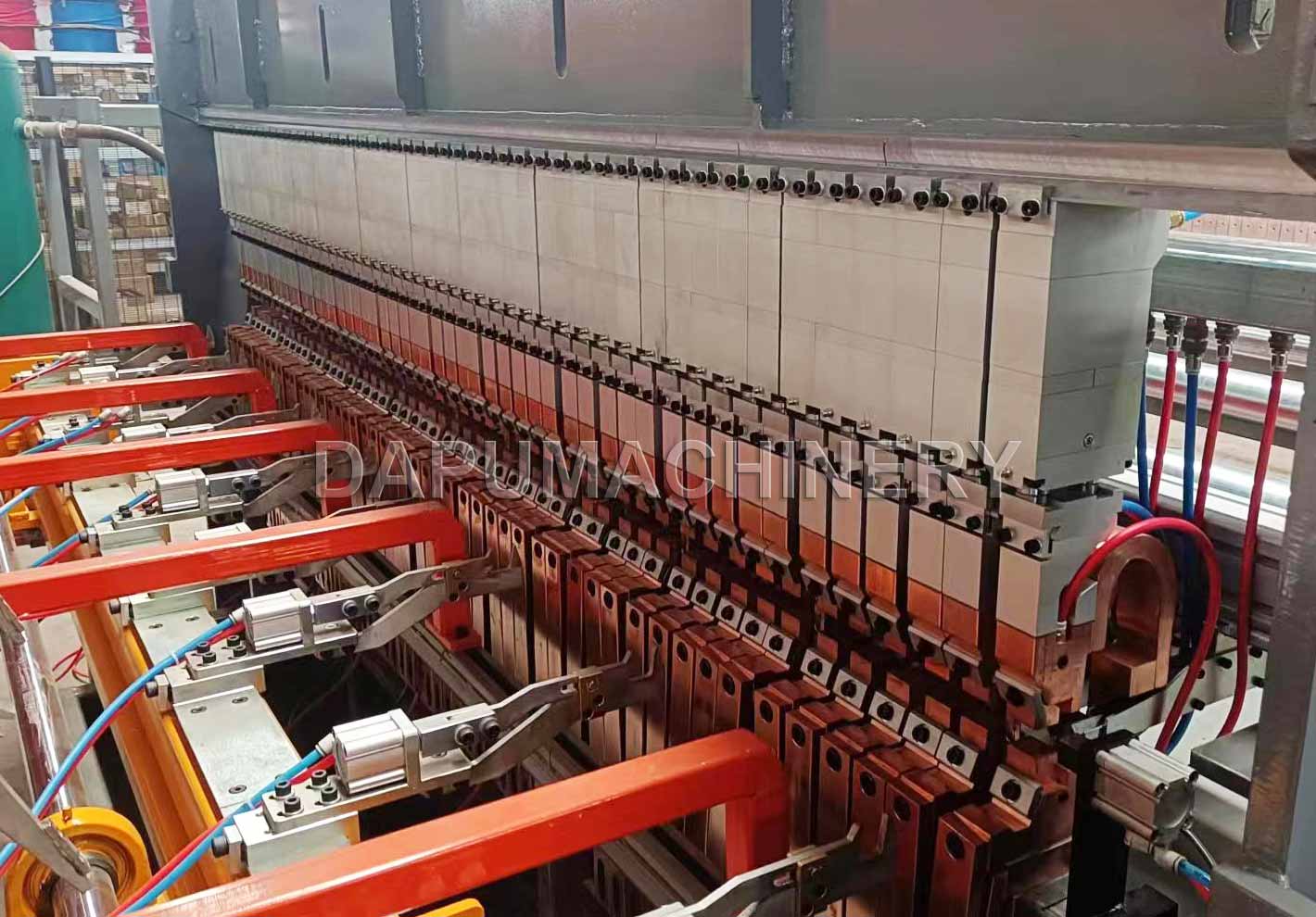

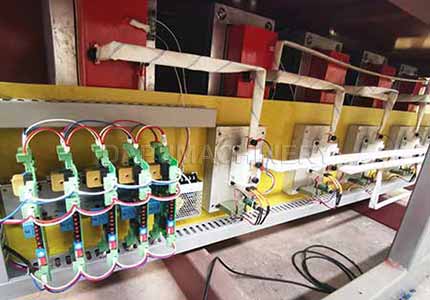

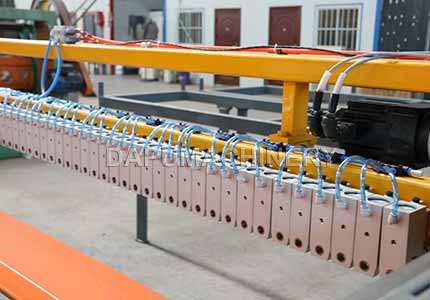

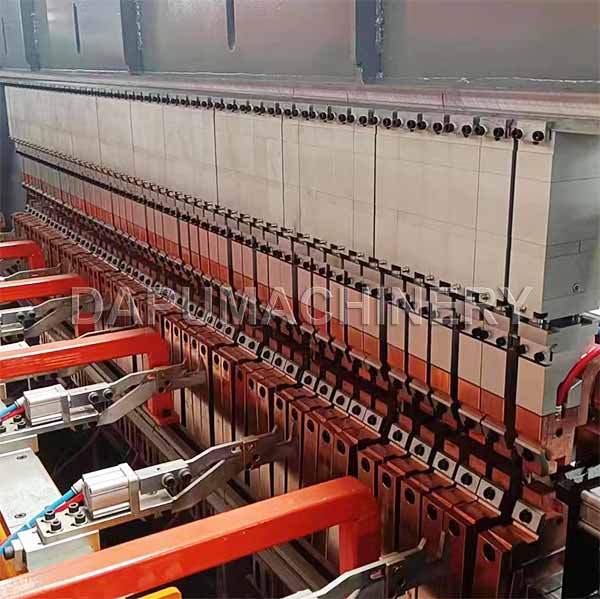

| Upper mhangura ruoko batanidza maviri welding electrodes, zviri nyore kuti magetsi conduction.(European design) SMC 63 akawanda-simba & simba-anoponesa mweya masilinda | Separate control tekinoroji, imwe yemagetsi bhodhi uye imwe SCR inodzora imwe welding transformer. |
|
|
|

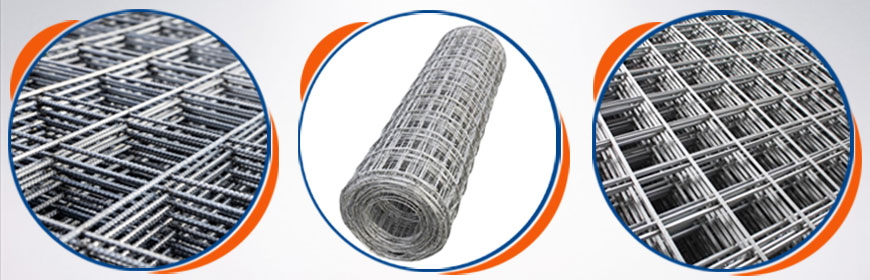

Panel mesh application
Kutengesa-mushure mebasa
| Isu tichapa yakazara seti yekuisa mavhidhiyo nezve concertina razor barbed waya kugadzira muchina
| Ipa marongero uye dhizaini yemagetsi yeconcertina barbed waya yekugadzira mutsara | Ipa yekumisikidza kuraira uye bhuku reotomatiki chengetedzo razor waya muchina | Pindura mubvunzo wese online maawa makumi maviri nemana pazuva uye taura nevainjiniya vane hunyanzvi | Vashandi vehunyanzvi vanoenda kunze kwenyika kunoisa uye kugadzirisa razor barbed tepi muchina uye kudzidzisa vashandi |
Equipment kuchengetedza
 | A.Lubrication liquid inowedzerwa nguva dzose.B.Kutarisa yemagetsi tambo yekubatanidza mwedzi wega wega. |
Certification
FAQ
Mubvunzo: Ndedzipi nzira dzekubhadhara dzinogamuchirwa?
A: T/T kana L/C inogamuchirwa.30% pamberi, tinotanga kugadzira muchina.Mushure memuchina wapera, tinokutumira yekuyedza vide kana unogona kuuya kuzotarisa muchina.Kana uchigutsikana nemuchina, ronga chiyero 70% kubhadhara.The isu tinogona kurodha muchina kwauri.
Q: Nzira yekutakura sei mhando dzakasiyana dzemuchina?
A: Kazhinji 1 seti yemuchina inoda 1x40GP kana 1x20GP+ 1x40GP chigaba, sarudza nemhando yemuchina uye midziyo yekubatsira yaunosarudza.
Mubvunzo: Kutenderera kwekugadzirwa kwerazor barbed waya muchina?
A: 30-45days
Q: Nzira yekutsiva zvikamu zvakasakara?
A: Isu tine yemahara spare chikamu bhokisi kurodha pamwe nemuchina.Kana paine zvimwe zvikamu zvinodiwa, kazhinji isu tine stock, tichakutumira kwauri mumazuva matatu.
Mubvunzo: Yakareba sei nguva yewaranti yemuchina werazor barbed waya?
A: 1 gore mushure mekunge muchina wasvika mufekitori yako.Kana chikamu chikuru chakaputsika nekuda kwemhando, kwete nemaoko kukanganisa kushanda, isu tinokutumira iwe kutsiva chikamu mahara.
Mubvunzo: Ndeupi musiyano pakati peiyo pneumatic mhando welding muchina uye mechanicha mhando?
A:
1. The welding speed inokurumidza.
2. Hunhu hwekupedzwa mesh huri nani nekuda kweiyo yakafanana welding pressure.
3. Zviri nyore kugadzirisa mesh kuvhurika nemagetsi-magineti kukosha.
4. Zviri nyore kuchengetedza nekugadzirisa.
